Platform Walkway square type panel grating

  • Platform Walkway square type panel grating
  • Platform Walkway square type panel grating
  • Platform Walkway square type panel grating
  • Platform Walkway square type panel grating

Platform Walkway square type panel grating

    Packaging: Plywood pallets
    Brand: OPCT
    Transportation: Ocean,Land,Air
    Place of Origin: Hengshui,Hebei,China
    Supply Ability: 2000 Square Meter/Square Meters per Month
    Certificate: ISO9001/14001/45001
    Port: All China Ports

Product Description

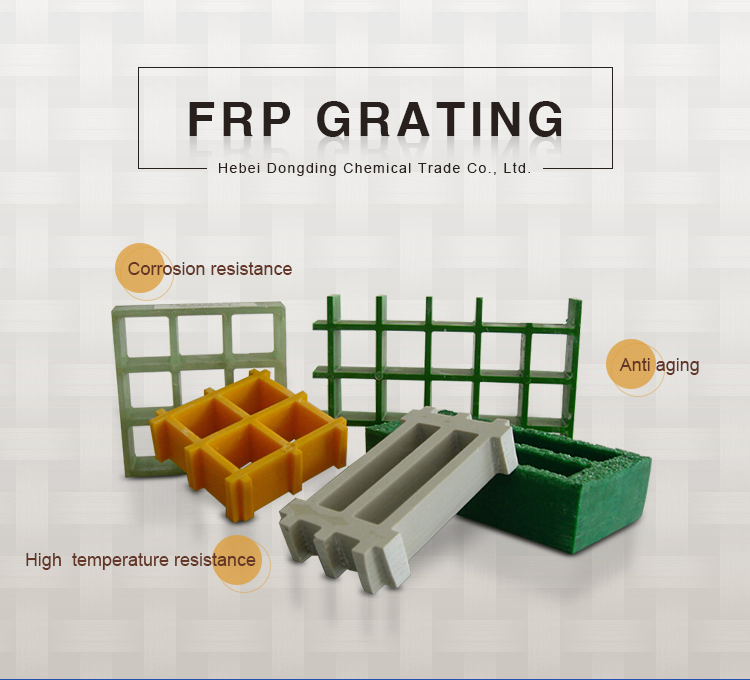

FRP Molded Grating Fiberglass Grating for Platform Walkway square type panel grating
Product Description
Molded grating is manufactured by laying continuous glass fibers in the mould in the direction of vertical and horizontal, and thoroughly wetted out with resin, layer by layer. When the weaving process is completed, the mould is heated to cure the panel.After curing, the panel is ejected from the mould. The standard panel would have meniscus (concave) top surface. Any process such as post applied grit could be bonded after as a secondary operation.
Product name
FRP molded grating



Material composition
Fiberglass roving,resin,filler



Resin type
UPR, ISO,VE



Color
Black , white , red , green , yellow , blue , grey or customized color



Surface
Smooth,GritFine grit,Concave,Grit cover,Chequer cover



Fabrication length
1220x2440,1220x3660,1000x4040



Certificate
ISO9001



Feature
Aging-Resistant,insulation,corrosion resistance



Size
Customised Size



Trade terms
EXW, FOB, CNF, CIF



Eco-Friendly
Yes



Shipping Way
By sea/air/express



Our company can be customized according to your request. The specifications list is for your reference, and you can contact us by phone or email.
Application
>> Industrial areas: such as chemical plants / plating plant operating platform, maintenance platform,photovoltaic power
generation platform walkway
>> Sewage treatment areas: sewage treatment plant aisle and sealing cover
>> Municipal Engineering areas: Pedestrian Walkway, Trench / Cable Trench Cover, Tree Grating
>> Marine applications area: Boat decks or bridge materials, Offshore oil platform
>> Other civilian areas: such as car washing, cattle and sheep farms and so on
>>Washing liquid can be used to clean the dust and dirties on the surface, no need of other maintenance measures.
>> Avoid direct connection with naked fire and high temperature, such as electric welding.
>>Avoid the drag and impact damage from any steel, steel sharp tools, and the painting pollution.
Advantages
1. Corrosion Resistance
Different types of resin provide their own different anti-corrosion properties, which could be used in different corrosion
circumstance such as acid, alkali, salt, organic Solvent (in gas or liquid form) and the like over a long period.
2. Fire Resistance
Our special formula provide grating with excellent fire resistant performance. Our FRP gratings pass ASTM E-84 Class 1.
3. Light Weight & High Strength
The perfect combination of the continuous E-glass roving and thermosetting polyester resin provide grating with light weight and high strength and its specific gravity is only 1/4 of that of steel, 1/3 of Aluminum. Different thickness and mesh size bring the client more choice.
4. Safety & Anti-slip
The high modulus of elasticity and various surfaces provided the super anti-skid performances. Its surface could be smooth surface, meniscus surface, grit surface and chequer plate cover which is suitable for different working places.
5. Electrical Insulating
High strength E-glass roving and high-grade resin provide the product super electric performance. Its electric break strength could reach 10KV/mm. There is no electric spark even when impact by tools, meanwhile it is non-magnetism. FRP Molded Grating could be used safely under the antiknock, diamagnetism and electric-resistance environments.
6. Aging Resistance
The high-grade resin and anti-ageing stabilizer provide grating long-life ageing resistant performance and the unique design make grating excellent self-cleanness function and keep its brightness and strength over a long time. The service life of grating could be 25 years.
Packaging & shipping
>> Packing: Packaged by plastic film then bundled by rope.
>> Delivery: Within 15 days after the payment was received.
Related products

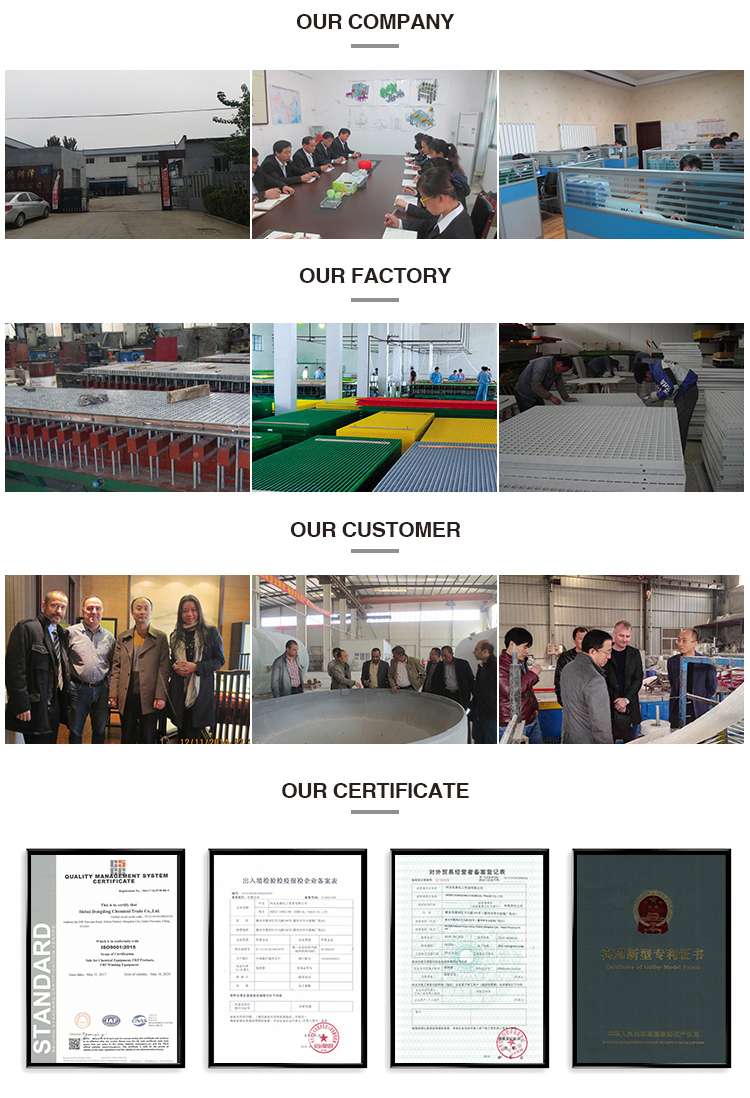

Company information

HEBEI DONGDING CHEMICAL TRADE CO.,LTD

 Hebei Dongding Chemical Trade Co. Ltd (Hereinafter as OPCT company) was founded in 2010, it is a high-tech enterprises that integrated of sale for project consulting, designed and developed, engineering design, materials purchasing, transport of goods, equipment installation, debugging and training in international trade field. Over the years, we has been engaged in the implementation, research and development and innovation of the potassium sulfate equipment, created many successful projects in the field of potassium sulfate equipment and accumulated rich experience;At the same time we constantly improve the potassium sulfate equipment, and achieved with independent intellectual property rights of patent technology. And we constantly strengthen the company`s internal management, strictly control the product quality, also have formed a set of relatively perfect production management, quality management and quality assurance system, obtained ISO9001 certificate. OPCT company had construct projects in various countries around the world, there is a lot of high-quality goods project, such as Saudi Arabia, Brazil, Iran, Indonesia, etc., and get the customer's high praise. In the future, OPCT company will go all the way with our partners, we will create brilliant together.
